Eco Green
Overview

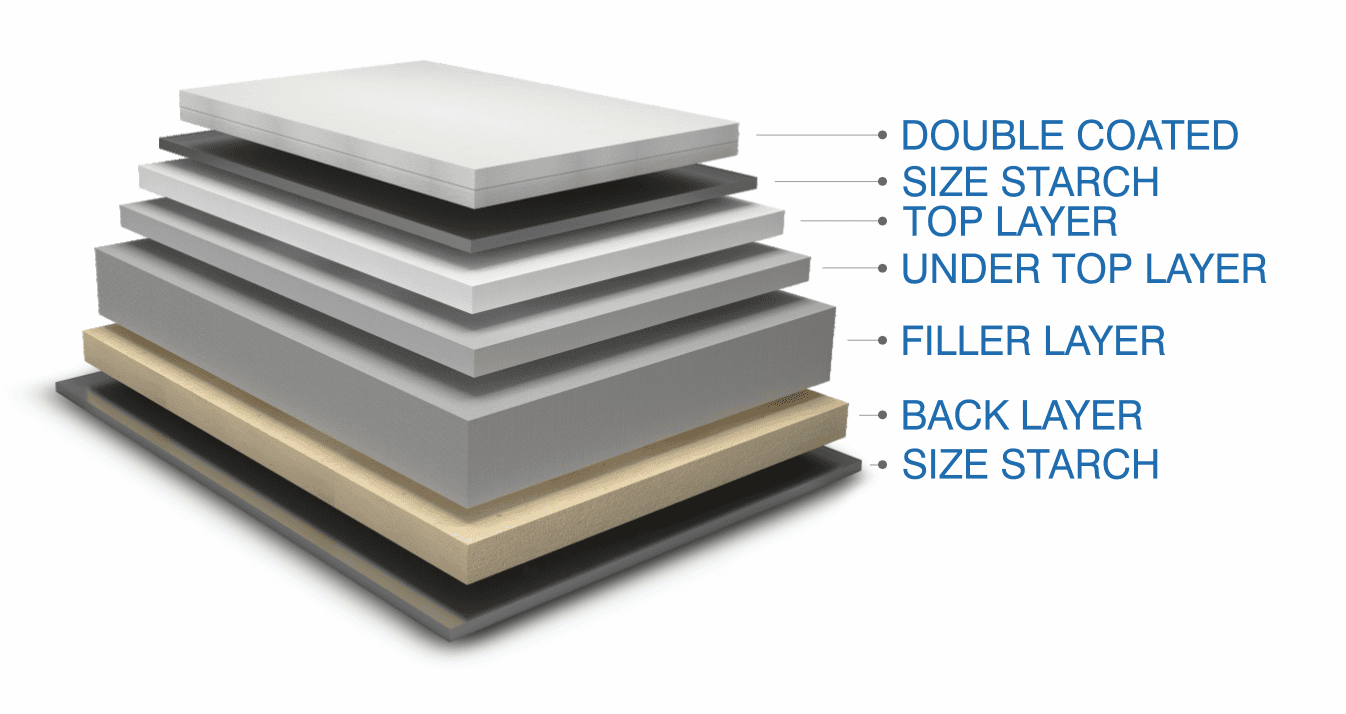

White Duplex Board with Excellent printability & smoothness, perfect for high-end & premium applications.
Features
Substance (GSM) | Caliper (µm) | Bulk (cc/gm) | Stiffness L&W (mN) Tappi T556 | ||
|---|---|---|---|---|---|
Tappi | Tappi T411 | MD | CD | GM | |
230 | 292 | 1.27 | 115 | 56 | 79 |
250 | 318 | 1.27 | 160 | 75 | 109 |
260 | 333 | 1.28 | 177 | 80 | 119 |
270 | 346 | 1.28 | 195 | 86 | 129 |
280 | 361 | 1.29 | 216 | 95 | 143 |
290 | 380 | 1.31 | 240 | 110 | 162 |
300 | 393 | 1.31 | 260 | 120 | 177 |
320 | 422 | 1.32 | 320 | 145 | 215 |
330 | 439 | 1.33 | 350 | 160 | 236 |
340 | 452 | 1.33 | 390 | 170 | 257 |
350 | 466 | 1.33 | 418 | 183 | 277 |
360 | 482 | 1.34 | 440 | 195 | 293 |
370 | 496 | 1.34 | 480 | 210 | 317 |
380 | 513 | 1.35 | 508 | 220 | 334 |
390 | 527 | 1.35 | 533 | 230 | 350 |
400 | 540 | 1.35 | 572 | 247 | 376 |
420 | 571 | 1.36 | 690 | 300 | 455 |
430 | 585 | 1.36 | 720 | 312 | 474 |
450 | 612 | 1.36 | 780 | 335 | 511 |
Parameter | Units | Value |
|---|---|---|
Cobb ( 60sec ) Top Back | g/m | <40 <50 |
Roughness - PPS | microns | <2.0 |
Plybond | J/m^2 | >100 |
IGT - Dry PICK - (Medium Viscosity) | m/sec | >0.7 |
Brightness ISO | % | >77 |
Gloss at 75° | % | >42 |
Moisture <= 300 GSM >300 GSM | % | 6.5-8.0 7.0-8.5 |
